DATE - 2019/05/13
TAEJIN HTC CMOS ULDO Voltage Regulator (Low ESR MLCC Applicable)

新的IC、新的設計、新的競爭力，誠摯為您服務。

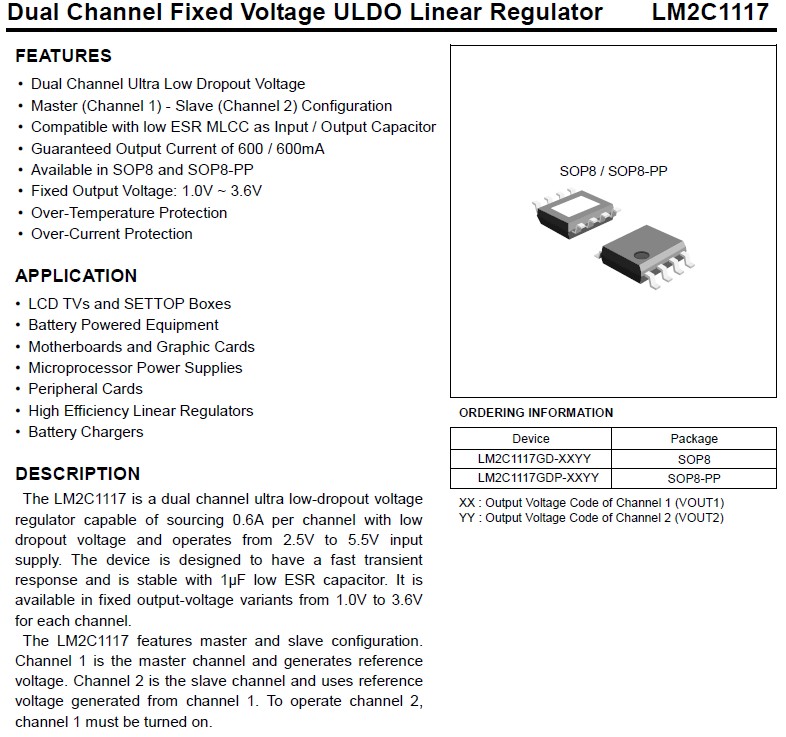

雙通道固定電壓ULDO線性穩壓器
LM2C1117 SOP8 / SOP8-PP

特徵
雙通道超低壓降電壓
主站（通道1） - 從站（通道2）配置
兼容低ESR MLCC作為輸入/輸出電容
保證輸出電流為600 / 600mA
提供SOP8和SOP8-PP
固定輸出電壓：1.0V~3.6V
過溫保護
過流保護

應用
液晶電視和機上盒
電池供電設備
主板和圖形卡
微處理器電源
外圍卡
高效線性穩壓器
電池充電器



CMOS ULDO穩壓器（低ESR MLCC適用）

Device Name VOUT[V] VREF[V] VIN_MIN[V] VIN_MAX[A] VOUT_MAX[A] VDROP_TYP[V] IQ_TYP[mA] PKG
TJ9198
(EN)		 0.8~3.6 Fixed 2.2 5.5 0.3 0.20
(@ILOAD=0.3A)		 0.035 DFN1x1-4/
SC-70-5L/
SOT-23-3L/5L
TJ4303
(EN)		 ADJ 0.6 2.5 6 0.3 0.20
(@ILOAD=0.3A)		 0.1 SOT-23-5L
LM1108 1.5~5.0 Fixed 2.5 6.5 0.3 0.3~0.6
(@ILOAD=0.3A)		 0.015 SOT-23-3L/
SOT-89-3L
LM8805
(EN)		 ADJ/1.5~6.0 1.27 2.5 6.5 0.6 0.6~1.3
(@ILOAD=0.6A)		 0.05 SOT-23-5L
LM2C1117
(Dual CH)		 1.0~3.6 Fixed 2.5 5.5 CH1:0.6
CH2:0.6		 0.24
(@ILOAD=0.6A)		 0.14 SOP-8PP
TJ5641
(Dual CH)		 1.0~3.3 Fixed 2.5 5.5 CH1:0.6
CH2:0.6		 0.24
(@ILOAD=0.6A)		 0.14 SOP-8PP
TJ1119C/F 1.0/1.2/1.5/
1.8/2.5/2.8/3.3		 Fixed 2.5 5.5 1 0.40
(@ILOAD=1A)		 0.13 SOT-223-3L/
TO-252-3L
TJ1801
(EN/PG/SS)		 ADJ 0.6 1.6 5.5 1 0.25~0.6
(@ILOAD=1A)		 0.15 SOP-8PP
TJ4310
(EN/PG/SS)		 ADJ 0.6 2.5 5.5 1 0.35
(@ILOAD=1A)		 0.15 SOP-8PP/
SOT-89-5L/
DFN2x3-8
TJ2132
(EN/PG/SS)		 ADJ 0.6 1.1 3.6 2 0.25
(@ILOAD=2A)		 0.1 SOP-8PP/
DFN3x3-8
TJ4320
(EN/PG/SS)		 ADJ 0.6 2.5 5.5 2 0.4
(@ILOAD=2A)		 0.2 SOP-8PP/
TO-252-5L
TJ4330
(EN/PG/SS)		 ADJ 0.6 2.5 5.5 3 0.4
(@ILOAD=3A)		 0.2 SOP-8PP/
TO-252-5L

Voltage Reference
TL431/A/C Programmable Precision Shunt Regulator (2.495V) TO-92 / SOT-23 / SOT-89
TJ431/A/C Programmable Precision Shunt Regulator (2.495V) TO-92 / SOT-23
LP431A/C Programmable Precision Shunt Regulator (2.500V) SOT-23
LM431A/C Programmable Precision Shunt Regulator (2.500V) SOT-23
TJR431A/C Programmable Precision Shunt Regulator (2.495V) SOT-23
LPR431A/C Programmable Precision Shunt Regulator (2.500V) SOT-23
TL432/A/C Programmable Precision Shunt Regulator (1.240V) TO-92 / SOT-23 / SOT-89

Standard Linear Voltage Regulator
LM78Lxx 3-Terminal 100mA Positive Fixed Voltage Regulator TO-92 / SOT-89 / SOP8
TJ78L05 3-Terminal 100mA Negative Fixed Voltage Regulator SOT-89
LM79Lxx 3-Terminal 100mA Negative Fixed Voltage Regulator TO-92 / SOT-89
LM317L 3-Terminal 100mA Adjustable Voltage Regulator TO-92 / SOT-89 / SOP8
LM78Mxx 3-Terminal 500mA Negative Fixed Voltage Regulator TO-252

LDO (Low Drop Out) Voltage Regulator
TJ1117GSF 300mA LDO Fixed & Adjustable Voltage Regulator SOT-23
LM1117 1.0A LDO Fixed & Adjustable Voltage Regulator SOT-223 / TO-252 / SOT-89
TJ1117GS 1.0A LDO Fixed & Adjustable Voltage Regulator SOT-223
LM1086 1.5A LDO Fixed & Adjustable Voltage Regulator TO-252 / TO-263
LM1085 3.0A LDO Fixed & Adjustable Voltage Regulator TO-252 / TO-263
LM1084 5.0A LDO Fixed & Adjustable Voltage Regulator TO-252 / TO-263

VLDO (Very Low Drop Out) Voltage Regulator
TJ75xxA 100mA CMOS LDO Voltage Regulator SOT-89 / SOT-23-5L
LM2950/1 100mA LDO Fixed & Adjustable Voltage Regulator TO-92 / SOP-8
LM2950G 100mA LDO Voltage Regulator TO-92 / SC-70
TJ5205 150mA Low Noise & High PSRR LDO Regulator SOT-23-5L / SOP8 / SOP8-PP
TJ62FPxx 250mA LDO Voltage Regulator SOT-23 / SOT-89
TJ75xx 250mA CMOS LDO Voltage Regulator SOT-89 / TO-92
LM37101/2 1.0A High-Voltage VLDO Voltage Regulator SOP8 / TO-252 / SOT-223
LM37102C 1.0A High-Voltage VLDO Voltage Regulator SOP8 / SOP8-PP
LM39100/1/2 1.0A High-Voltage VLDO Voltage Regulator SOT-223 / SOP8 / TO-252
LM2940 1.0A High-Voltage VLDO Voltage Regulator SOT-223 / TO-252
LM29150/1/2 1.5A High-Voltage VLDO Voltage Regulator TO-252 / TO-263 / TO-220
LM39300/1/2 3.0A High-Voltage VLDO Voltage Regulator TO-263
LM39500/1/2 5.0A High-Voltage VLDO Voltage Regulator TO-263

CMOS ULDO (Ultra Low Drop Out) Voltage Regulator
TJ9198 300mA CMOS ULDO Regulator DFN1010 / SC70 / SOT-23
TJ4303 300mA CMOS ULDO Voltage Regulator SOT-23
LM1108 300mA CMOS ULDO Voltage Regulator SOT-23 / SOT-89
LM8805 600mA CMOS LDO Voltage Regulator SOT-23 / SOT-89
LM2C1117 600mA Dual Channel CMOS ULDO Voltage Regulator SOP8-PP
TJ5641 600mA Dual Channel CMOS ULDO Voltage Regulator SOP8-PP
TJ1119C/F 1.0A Fixed Output CMOS ULDO Voltage Regulator SOT-223 / TO-252
TJ4310 1.0A CMOS ULDO Voltage Regulator SOP8/-PP / SOT-89 / DFN
TJ1801 1.0A CMOS ULDO Voltage Regulator SOP8-PP
TJ2132 2.0A Low Voltage Conversion ULDO Voltage Regulator SOP8-PP / DFN
TJ4320 2.0A CMOS ULDO Voltage Regulator SOP8-PP / TO-252
TJ4330 3.0A CMOS ULDO Voltage Regulator SOP8-PP / TO-252
TJ2134 4.0A Low Voltage Conversion ULDO Voltage Regulator SOP8-PP

DDR Memory Termination Regulator (Sink/Source Linear Regulator)
TJ2998 DDR Memory (DDR-2/3/3L/4) Termination Voltage Regulator SOP8 & SOP8-PP

OCP IC
TJ2242 Adjustable Current Limited Power Distribution Switch SOT-23-6L
TJ2242A Adjustable Current Limited Power Distribution Switch SOT-23-6L
TJ82034 2.5A Fixed Current Limited Power Distribution Switch SOP8
