AMPLIFIER MCP604-E/P PDIP-14 MICROCHIP
| 附件下載 | |
| 商品名稱 | 2.7V to 6.0V Single Supply CMOS Op Amps |
| 訂購數量 | |
| 依數量訂價 | 50 NTD |
| FLYiNG 零件編號 | ICMCP604EPMICROCHIP |
| FLYiNG 庫存現貨 | 30 |
| 製造商 | MICROCHIP |
| 製造商零件編號 | MCP604-E/P |
| 說明 | AMPLIFIER MCP604-E/P PDIP-14 MICROCHIP |
| 無鉛狀態 / RoHS 指令狀態 | ROHS3 合規 |
| 訂購數量 | NTD 單價 / PCS |
| 1~9 | 50 |
| 10~99 | 48 |
| 製造商 | MICROCHIP |
| 系列 | MCP604 |
| 原廠料號 | MCP604-E/P |
| 通道數 | 4 |
| 電源電壓(MAX) | 6V |
| 電源電壓(MIN) | 2.7V |
| 輸入偏移電壓 | 700µV |
| 工作溫度 | -40°C ~ 125°C |
| 封裝／外殼 | PDIP-14 |
| 安裝類型 | DIP 引腳 |
| 無鉛狀態 RoHS | ROHS3 合規 |
| 濕度敏感等級 (MSL) | 1 (無限) |
| 標準包裝數量 | 30/管 |

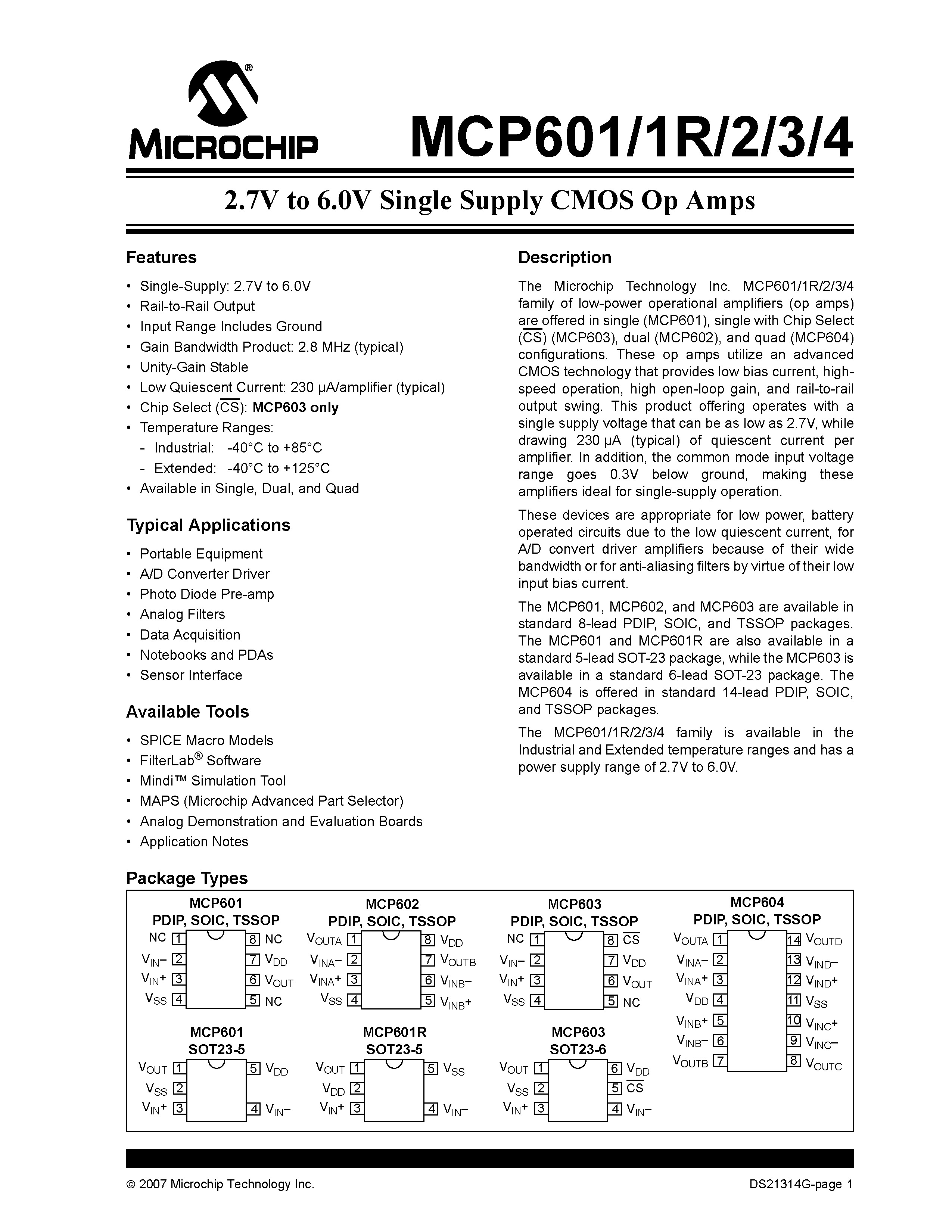

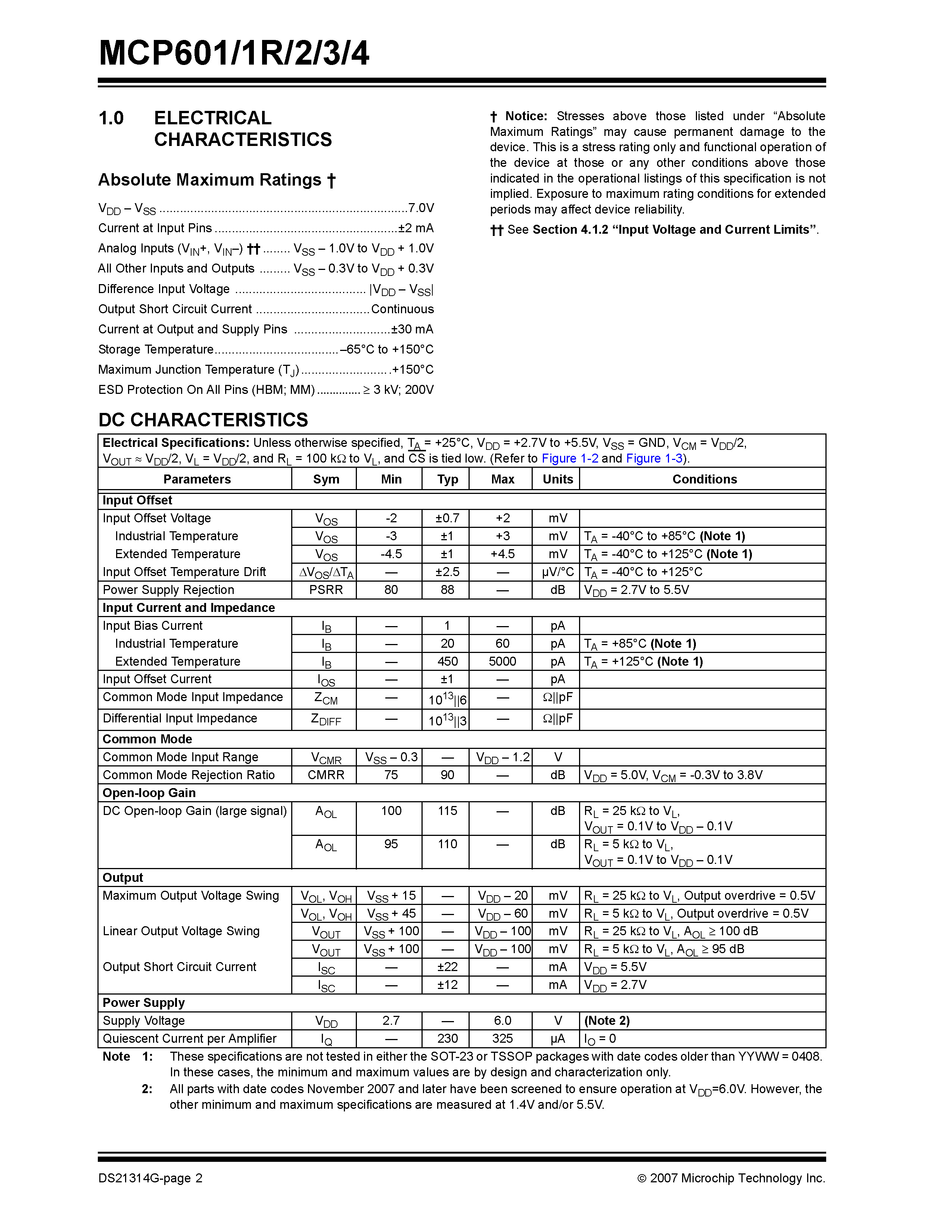

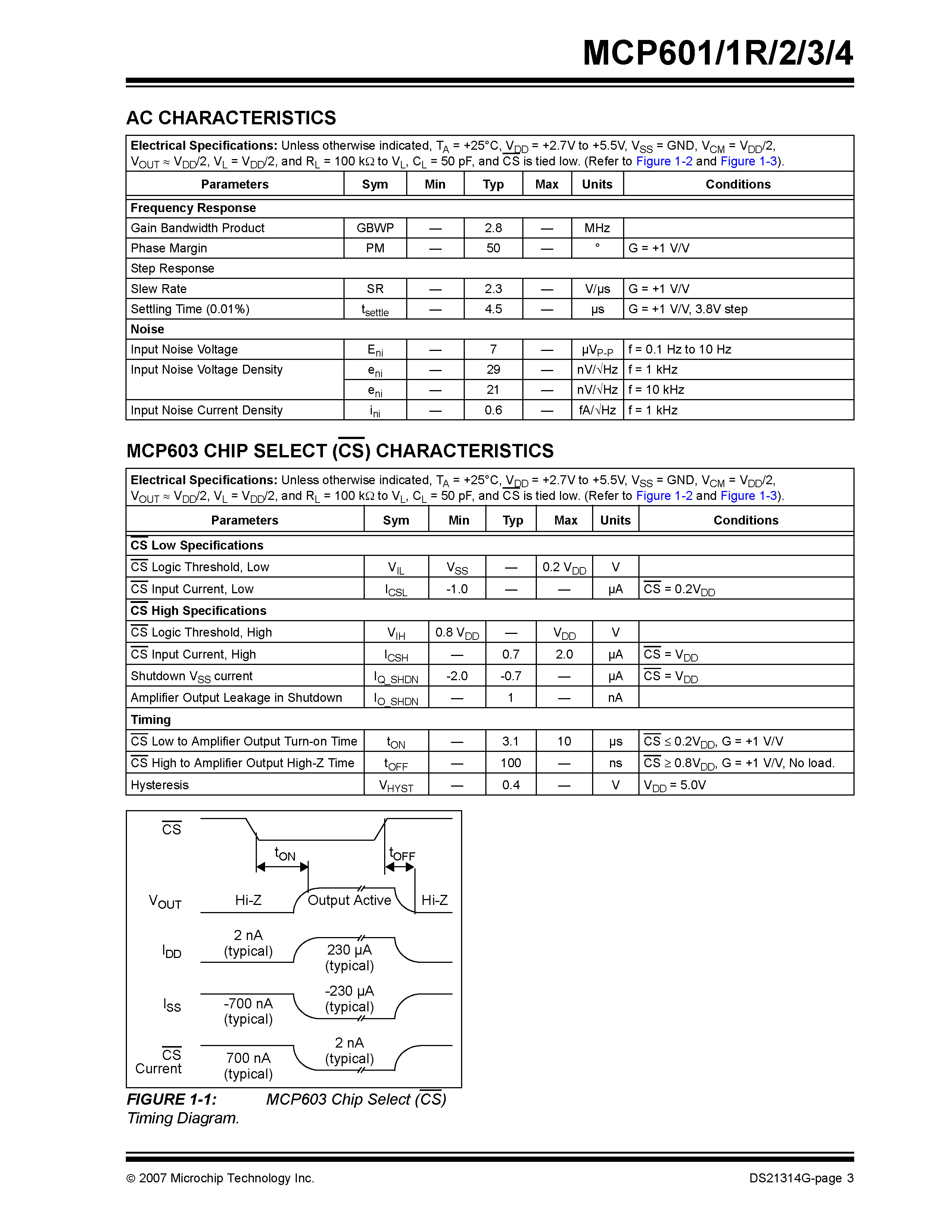

MCP601/1R/2/3/4
2.7V to 6.0V Single Supply CMOS Op Amps
Features
The Microchip Technology Inc. MCP601/1R/2/3/4 family of low-power operational amplifiers (op amps) are offered in single (MCP601), single with Chip Select (CS) (MCP603), dual (MCP602), and quad (MCP604) configurations. These op amps utilize an advanced CMOS technology that provides low bias current, highspeed operation, high open-loop gain, and rail-to-rail output swing. This product offering operates with a single supply voltage that can be as low as 2.7V, while drawing 230 μA (typical) of quiescent current per amplifier. In addition, the common mode input voltage range goes 0.3V below ground, making these amplifiers ideal for single-supply operation.
These devices are appropriate for low power, battery operated circuits due to the low quiescent current, for A/D convert driver amplifiers because of their wide bandwidth or for anti-aliasing filters by virtue of their low input bias current.
The MCP601, MCP602, and MCP603 are available in standard 8-lead PDIP, SOIC, and TSSOP packages. The MCP601 and MCP601R are also available in a standard 5-lead SOT-23 package, while the MCP603 is available in a standard 6-lead SOT-23 package. The MCP604 is offered in standard 14-lead PDIP, SOIC, and TSSOP packages.
The MCP601/1R/2/3/4 family is available in the Industrial and Extended temperature ranges and has a power supply range of 2.7V to 6.0V.
MCP601/1R/2/3/4
2.7V 至 6.0V 單電源 CMOS 運算放大器
特徵
Microchip Technology Inc. MCP601/1R/2/3/4 系列低功耗運算放大器（op amps）提供單通道（MCP601）、帶片選（CS）的單通道（MCP603）、雙通道（MCP602）和四 (MCP604) 配置。這些運算放大器採用先進的 CMOS 技術，可提供低偏置電流、高速運行、高開環增益和軌到軌輸出擺幅。該產品採用低至 2.7V 的單電源電壓運行，同時每個放大器的靜態電流為 230 μA（典型值）。此外，共模輸入電壓範圍低於地電平 0.3V，使這些放大器非常適合單電源操作。
這些器件由於其低靜態電流而適用於低功率、電池供電的電路，由於其寬帶寬而適用於 A/D 轉換驅動放大器，或由於其低輸入偏置電流而適用於抗混疊濾波器。
MCP601、MCP602 和 MCP603 採用標準 8 引腳 PDIP、SOIC 和 TSSOP 封裝。 MCP601 和 MCP601R 也提供標準 5 引腳 SOT-23 封裝，而 MCP603 提供標準 6 引腳 SOT-23 封裝。 MCP604 採用標準 14 引腳 PDIP、SOIC 和 TSSOP 封裝。
MCP601/1R/2/3/4 系列可用於工業和擴展溫度範圍，電源範圍為 2.7V 至 6.0V。
2.7V to 6.0V Single Supply CMOS Op Amps
Features
- Single-Supply: 2.7V to 6.0V
- Rail-to-Rail Output
- Input Range Includes Ground
- Gain Bandwidth Product: 2.8 MHz (typical)
- Unity-Gain Stable
- Low Quiescent Current: 230 μA/amplifier (typical)
- Chip Select (CS): MCP603 only
- Temperature Ranges:
- Industrial: -40°C to +85°C
- Extended: -40°C to +125°C - Available in Single, Dual, and Quad
- Portable Equipment
- A/D Converter Driver
- Photo Diode Pre-amp
- Analog Filters
- Data Acquisition
- Notebooks and PDAs
- Sensor Interface
- SPICE Macro Models
- FilterLab® Software
- Mindi™ Simulation Tool
- MAPS (Microchip Advanced Part Selector)
- Analog Demonstration and Evaluation Boards
- Application Notes
The Microchip Technology Inc. MCP601/1R/2/3/4 family of low-power operational amplifiers (op amps) are offered in single (MCP601), single with Chip Select (CS) (MCP603), dual (MCP602), and quad (MCP604) configurations. These op amps utilize an advanced CMOS technology that provides low bias current, highspeed operation, high open-loop gain, and rail-to-rail output swing. This product offering operates with a single supply voltage that can be as low as 2.7V, while drawing 230 μA (typical) of quiescent current per amplifier. In addition, the common mode input voltage range goes 0.3V below ground, making these amplifiers ideal for single-supply operation.
These devices are appropriate for low power, battery operated circuits due to the low quiescent current, for A/D convert driver amplifiers because of their wide bandwidth or for anti-aliasing filters by virtue of their low input bias current.
The MCP601, MCP602, and MCP603 are available in standard 8-lead PDIP, SOIC, and TSSOP packages. The MCP601 and MCP601R are also available in a standard 5-lead SOT-23 package, while the MCP603 is available in a standard 6-lead SOT-23 package. The MCP604 is offered in standard 14-lead PDIP, SOIC, and TSSOP packages.
The MCP601/1R/2/3/4 family is available in the Industrial and Extended temperature ranges and has a power supply range of 2.7V to 6.0V.
MCP601/1R/2/3/4
